Part#: GP3157-SMD-S30W

Cross Reference: 3057, 3357, 3457, 4157

Caution: For eyes safety, please don't look directly at the bulb within one meter.

Features:

• 30 SMD LEDs

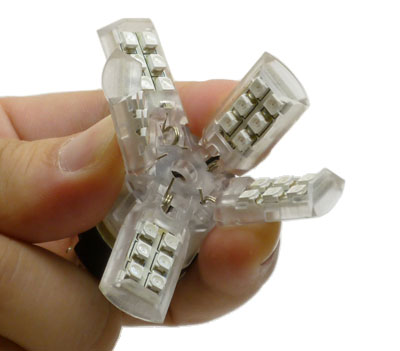

• 5 LED arms expand to offer wider of light
• Each LED arm can be folded for easy installation

Specification:

• Emitting color: White. 7000K
• Average life: 30,000hr
• LED type: SMD
• Voltage: 12~15.5V
• Luminous flux (lm): 90/40 lm (high/low)
• Single LED Axial Intensity: 4000 mcd
• Test condition: Power 2.9W/0.8W ±10% (high/low). Current 200/55mA ±10% (high/low)
• Beam angle (degree): 120
• Operating temperature range: -35ºC to +85ºC
• Storage temperature range: -40ºC to +100ºC

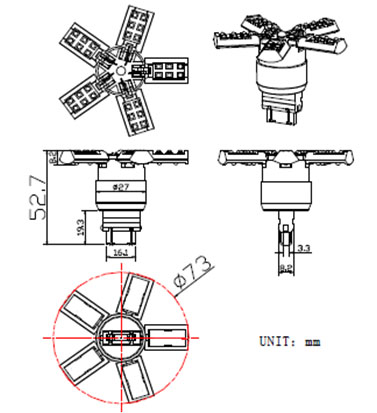

Dimension:

• S25 base. 52.7mm x 73mm (height x diameter)
• Size for each SMD LED: 3.5mm x 2.8mm

Package Contents:

• 1pcs 3157 bulb

Warranty: 1 Year
